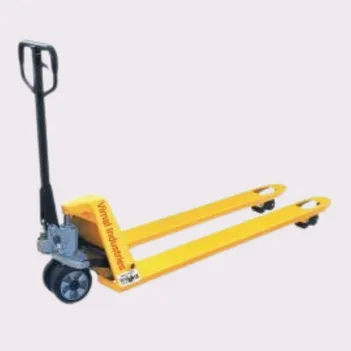

3000 kgs Hydraulic Pallet Truck
Product / Stacker
3000 kgs Hydraulic Pallet Truck INR 15,500
Equipment Details
VIMAL 3000 kg Hydraulic Pallet Truck is effective in most common type loading and unloading tasks, transporting goods from one place to another in your warehouse/distribution center. Widely used in logistics, warehouse, factory and other places.
Integral casting pump, durable body, high quality mild steel/stainless steel body, chrome plated piston rod and spar finishing makes it one of the fine products among the others and ensures a prolonged service life.
TECHNICAL SPECIFICATIONS
FEATURES
- Steering
Easy to maneuver with 210 degrees turning radius. All pivots points are greased ensures excellent maneuverability with effortless steering. - Spray finishing
Standard painting system ensures the best powder coating and painting quality. - Controlled speed
Speed lowering valve can adjust the decent speed freely. - Reliable construction
Heavy gauge steel construction. Drop forged lift link arms provide available strength and durability. - Easy lowering operation
Foot and hand control the lowering function to ensure easy operation.
Model Number : VI-3000-1150-550-85 Nylon
HSN Code : 84279000
Stock: In-Stock
Main Specs : Solid frame and reinforced fork, standard nylon wheel, optional PU & CI wheel, ergonomic large rubber handle for comfortable hold & easy operation
Model Number : VI-3000-1150-550-85 PU
HSN Code : 84279000
Stock: In-Stock
Main Specs : Solid frame and reinforced fork, standard nylon wheel, optional PU & CI wheel, ergonomic large rubber handle for comfortable hold & easy operation, suitable for epoxy floor
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Minima incidunt voluptates nemo, dolor optio quia architecto quis delectus perspiciatis. Nobis atque id hic neque possimus voluptatum voluptatibus tenetur, perspiciatis consequuntur.
Overall casting oil pump to avoid overloading
Nylon Guided Wheels
Enclosed forks root by welding
Solid frame and reinforced fork
Standard nylon wheel, optional PU & CI wheel
Ergonomic large rubber handle for comfortable hold & easy operation
Shorter & stronger end cap connected with the lifting cylinder
Easy & comfortable operation

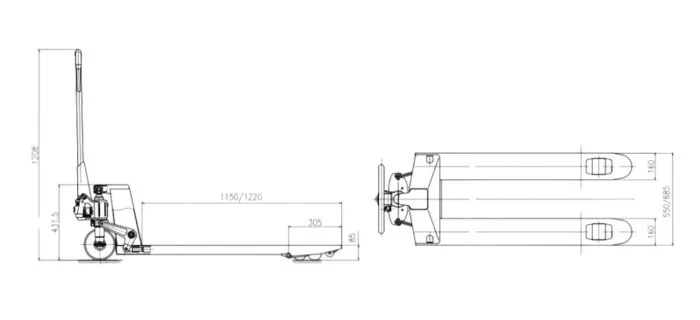

| Model | VI-3000-1150-550-85X | VI-3000-1220-685-85X | |
|---|---|---|---|
| Capacity | kg | 3000 | 3000 |
| Pump Type | Intergrated | Intergrated | |
| Wheel (drive/load) Type | Nylon | Nylon | |
| Size of Steering Wheel | mm | ￠180*50 | ￠180*50 |
| Size of Loading Wheel(single wheel) | mm | ￠80*93 | ￠80*93 |
| Size of Loading Wheel (double wheel) | mm | ￠80*70 | ￠80*70 |
| Lifting Height | mm | 115 | 115 |
| Max. Fork Lifting Height | mm | 200 | 200 |
| Lowered Height of Fork | mm | 85 | 85 |
| Fork Outside Distance | mm | 550 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Fork Width | mm | 160 | 160 |
| Steel Thickness (after painting) | mm | 4 | 4 |
| Weight | kg | 66.8-71 | 66.8-71 |
