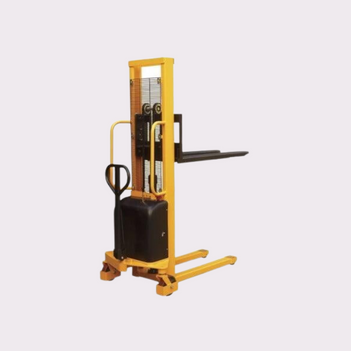

VIMALeconomy power stacker is an effective solution for warehouse applications. The economy series electric stacker is the most reasonable, simplest and most effective stacking solution for warehouse applications. Ideal solution for light-duty applications, perfect alternative to manual and semi electric stacker
| Model No. | VI-ES-1516EPW | VI-ES-1525EPW | VI-ES-1530EPW | VI-ES-1533EPW | ||
|---|---|---|---|---|---|---|
| Characteristics | Drive Unit | Electric | Electric | Electric | Electric | |
| Operator Type | Walkie | Walkie | Walkie | Walkie | ||
| Capacity | kg | 1500 | 1500 | 1500 | 1500 | |
| Laod Center Distance | mm | 600 | 600 | 600 | 600 | |
| Wheel Base | mm | 1231 | 1231 | 1231 | 1231 | |
| Weight | ServiceWeight (With Battery) | kg | 375 | 425 | 445 | 475 |
| ServiceWeight (Without Battery) | kg | 345 | 395 | 315 | 445 | |
| Wheel | Tyre Type Driving Wheels/ Laoding Wheels | PU | PU | PU | PU | |
| Size of Loading Wheels | mm | ⌀78 | ⌀78 | ⌀78 | ⌀78 | |
| Size of Driving Wheels | mm | ⌀210 | ⌀210 | ⌀210 | ⌀210 | |
| Size of Balance Wheel | mm | ⌀180 | ⌀180 | ⌀180 | ⌀180 | |
| Wheel Quantiy | pcs | 4 | 4 | 4 | 4 | |
| Specification | Lift Height | mm | 1600 | 2500 | 3000 | 3300 |
| Mast Lower Height | mm | 2015 | 1785 | 2035 | 2185 | |
| Mast Extend Height | mm | 2015 | 3000 | 3500 | 3800 | |
| Lowered Height | mm | 85 | 85 | 85 | 85 | |
| Overall Length | mm | 1720 | 1720 | 1720 | 1720 | |
| Length to Face of Forks | mm | 355 | 355 | 355 | 355 | |
| Overall Width | mm | 800 | 800 | 800 | 800 | |
| Fork Dimensions (W*L) | mm | 54*160*1150 | 54*160*1150 | 54*160*1150 | 54*160*1150 | |
| Width across Forks | mm | 540/680 | 540/680 | 540/680 | 540/680 | |
| Lowered Height of Forks | mm | 90 | 90 | 90 | 90 | |
| Clearance | mm | 30 | 30 | 30 | 30 | |
| Aisle Width of Pallets (1000*1200 mm) | mm | 2256 | 2256 | 2256 | 2256 | |
| Aisle Width of Pallets | mm | 2184 | 2184 | 2184 | 2184 | |
| (800*1200 mm) | ||||||
| Minimum Truning Radius | mm | 1390 | 1390 | 1390 | 1390 | |
| Performance | Travelling Speed, Laden / Unladen | km/h | 3.5/4.0 | 3.5/4.0 | 3.5/4.0 | 3.5/4.0 |
| Lifting Spees, Laden/Unladen | mm/s | 95/134 | 95/134 | 95/134 | 95/134 | |
| Lowering Speed, Laden/Unladen | mm/s | 130/94 | 130/94 | 130/94 | 130/94 | |
| Max. Grade Ability, Laden/Unladen | % | 7-May | 7-May | 7-May | 7-May | |
| Service Brake Type | Electronic | Electronic | Electronic | Electronic | ||
| Electric Engine | Driving Motor | kw | 0.65 | 0.65 | 0.65 | 0.65 |
| Liftin Motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Battery Voltage / Capacity | V/ah | 24/75 | 24/75 | 24/75 | 24/75 | |
| Battery Size | mm | (260*172*214)*2 | (260*172*214)*2 | (260*172*214)*2 | (260*172*214)*2 | |
| Control System | 1212P-2501 (Curtis) | 1212P-2501 (Curtis) | 1212P-2501 (Curtis) | 1212P-2501 (Curtis) |
