Dual Mast Self Propelled Aluminium Work Platform
Product / Stacker
Dual Mast Self Propelled Aluminium Work Platform
Model Number : VI-AWP-SP-7.5 (II), VI-AWP-SP-9 (II)
HSN Code : 84289090
Stock: In-Stock
Main Specs : AC Power to Platform, platform Working Light, extension platform, emergency Stop System, tilting protection system, buzzer, horn, forklift slots, charging protection system
Equipment Details
| Model | VI-AWP-SP-7.5 (II) | VI-AWP-SP-9 (II) | |
|---|---|---|---|
| Lift Capacity | kg | 200 | 150 |
| Platform Occupancy Max | m | 7.5 | 9 |

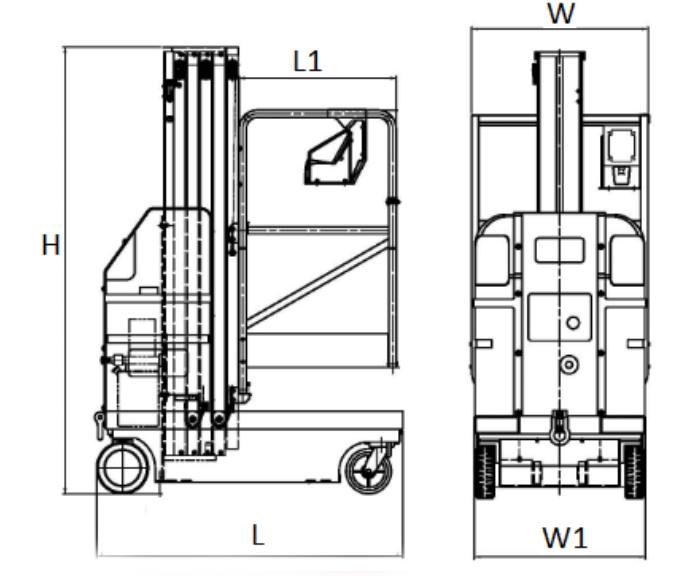

| Stowed Length | m | 1.5 | 1.5 |
| Stowed Width | m | 1 | 1 |
| Stowed Height | m | 1.99 | 1.99 |
| Platform Size | m | 1.00*0.70 | 1.00*0.70 |
| Ground Clearance | m | 0.05 | 0.05 |
| Wheelbase | m | 1.28 | 1.28 |
| Gradeability | % | 25 | 25 |
| Maximum Working Slope | ° | 3 | 3 |
| Driving Wheel | m | 0.25*0.08 | 0.25*0.08 |
| Front Tyre | in | 8 | 8 |
| Driving Motor | V/kw | 2*24/0.5 | 2*24/0.5 |
| Lifting Motor | V/kw | 24/2 | 24/2 |
| Power Source | V/Ah | 2*12/120 | 2*12/120 |
| Charger | V/A | 24/12 | 24/12 |
| Weight | kg | 1100 | 1250 |
HEAVY DUTY MOBILE SCISSOR LIFT
For different working purpose & working condition, it can be changed to
- Towing Type: Equipped in chassis heightening design with inflammable wheels for convenient moving.
- Truck-mounted Type: Installed in the bed cover of pickup or trucks for long distance aerial working.
- Insulated Type: Work Platform is made of insulating material for places required insulated condition.
- Flameproof Type: Three key parts made for explosion proof purposes: electric box, socket, and plug for special places which require explosion proof circumstances.
Standard Configuration:
- Auxiliary Lowering Device
- Big Level Guage
- Emergency Stop Button
- Anti-burst System
- Limit Switches
- Short Circuit & Leakage Protection System
Dual Mast Self Propelled Aluminium Work Platform Features List
STANDARD FEATURES

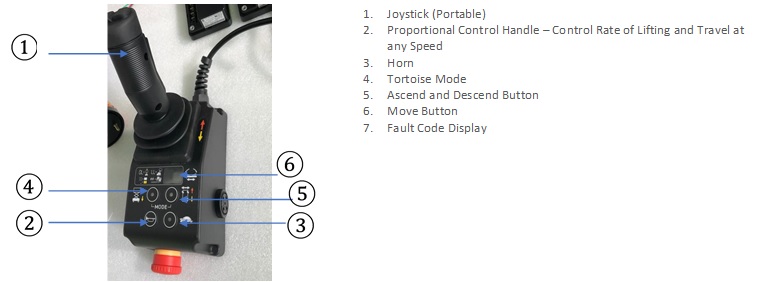

- Proportional Controls
- DC Power Supply
- Drivable at Full Height
- Beacon
- Non -marking Tyres
- 2WD

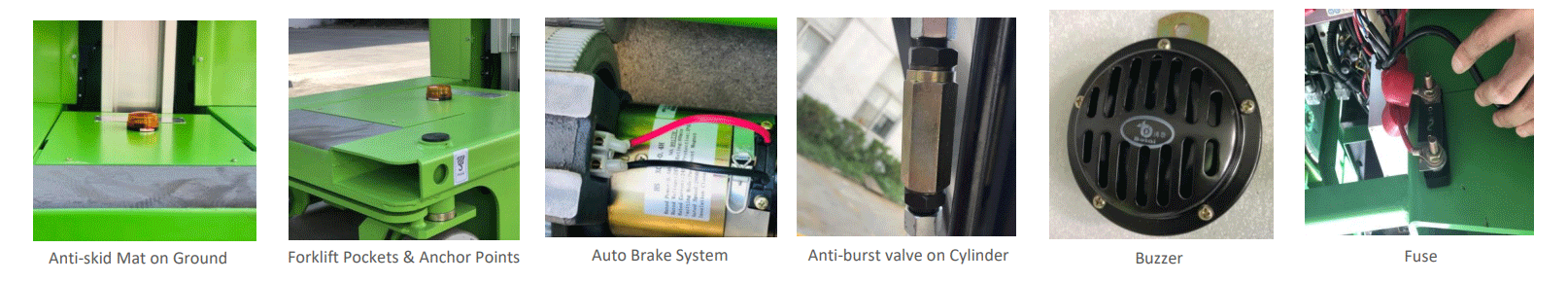

- Automatic Braking System
- Anti-burst Valve on Cylinder
- Cylinder Burst Valve
- Emergency Stop Button

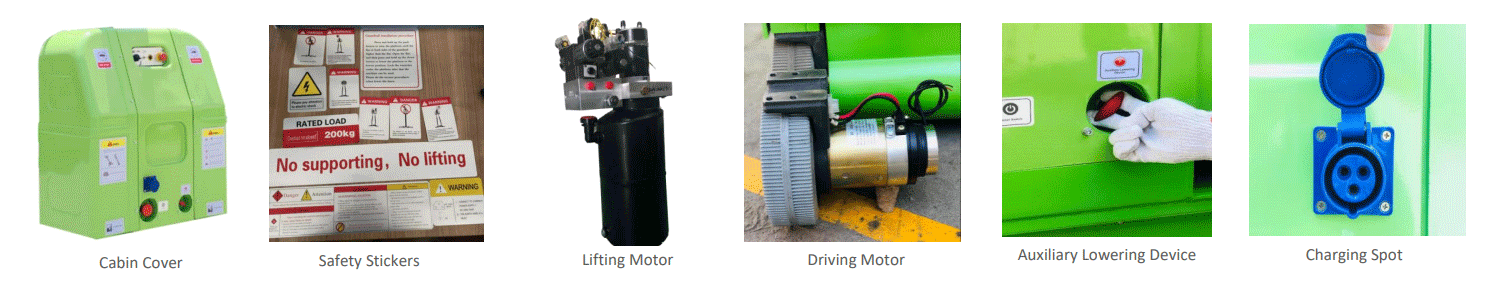

- Auxiliary Lowering
- On-board Diagnostic System

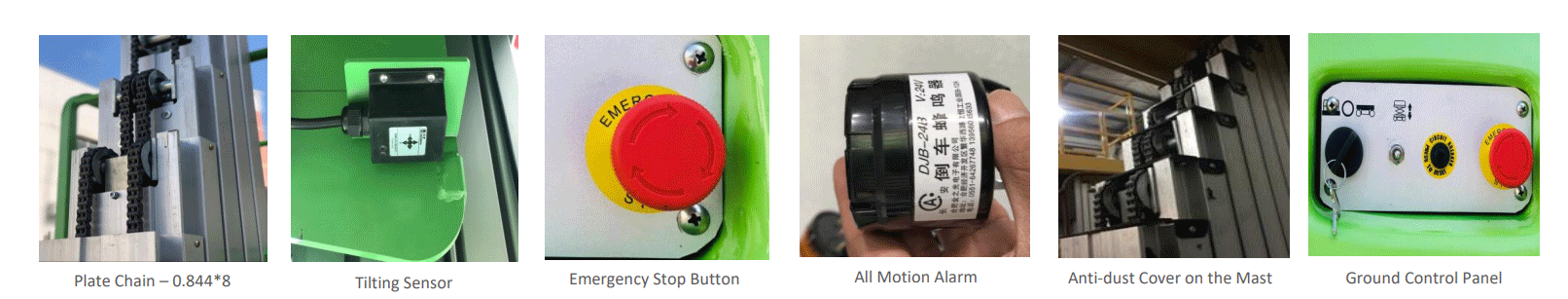

- Tilt Sensor with Alarm
- Forklift Pockets
- Over Charge Protection
- All Motion Alarm
- Horn
- Double Wheel Brake

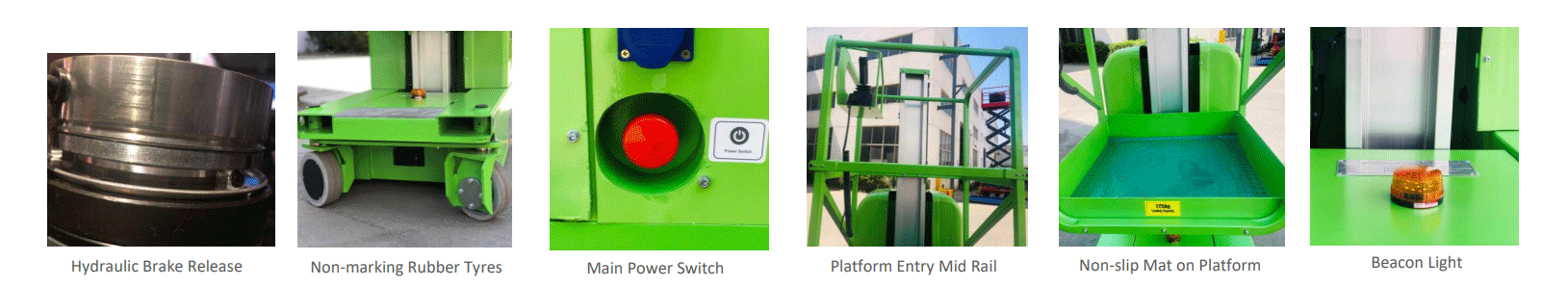

- Hydraulic Brake Release
- Anti-dust Cover on the Mast
- Powder Coated Painting
- Gel Type Battery
- Hour Meter
- Battery Indicator
- Pothole Protection
